Complete front AP Racing by Essex Radi-CAL Competition Brake Kit for the BMW F80 M3, F82/F83 M4, F87 M2, M2 Competition and M2 CS (iron or carbon-ceramic OEM brakes). AP Racing Pro5000R six-piston Radi-CAL calipers, 372x34mm 72-vane J Hook two-piece discs, Spiegler stainless lines and brackets. Saves up to 26 lbs of unsprung weight vs. the OEM M2 Competition front brakes and clears many 18" track wheels.
Which variant do I need?
| Variant | Fits | Essex part # | Ships at |
|---|---|---|---|
| CP9660 / Standard Anodized | BMW F80 M3, F82/F83 M4, F87 M2, M2 Competition, M2 CS (2015–2021) | 13.01.10045 | In stock |
| CP9660 / ENP (Electroless Nickel Plated) | BMW F80 M3, F82/F83 M4, F87 M2, M2 Competition, M2 CS (2015–2021) | 13.01.10045-ENP | In stock |
| CP9668 / Standard Anodized | BMW F80 M3, F82/F83 M4, F87 M2, M2 Competition, M2 CS (2015–2021) | 13.01.10046 | In stock |
| CP9668 / ENP (Electroless Nickel Plated) | BMW F80 M3, F82/F83 M4, F87 M2, M2 Competition, M2 CS (2015–2021) | 13.01.10046-ENP | In stock |

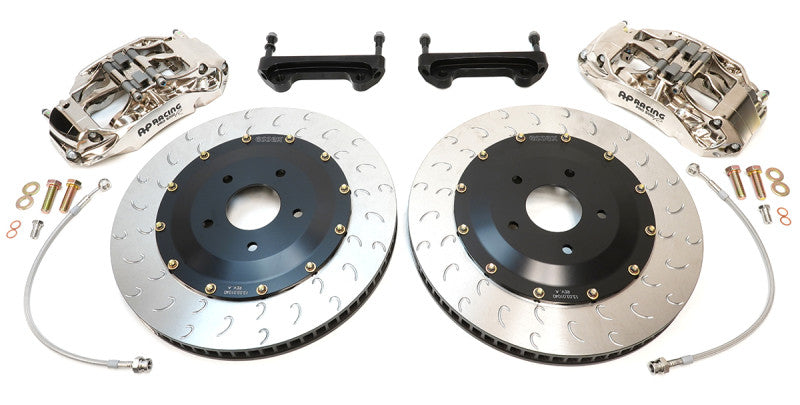

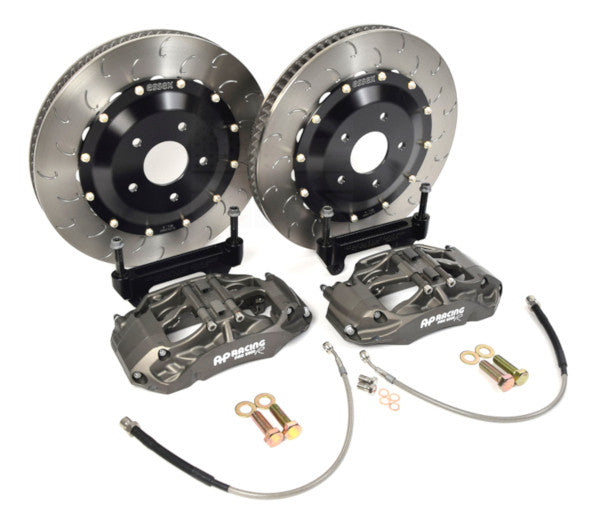

What's in the box
- One pair AP Racing CP9660 Radi-CAL Pro5000R six piston calipers
- One pair 372x34mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
- One pair caliper mounting brackets and hardware
- One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
- Detailed installation instructions
Brake pads are not included. Racing pads are a personal choice, so Essex leaves them out of the kit price. The AP Racing Pro5000R calipers use industry-standard pad shapes stocked by every major pad manufacturer (Ferodo, Pagid, PFC, Raybestos, Endless, Hawk and more). Ask us to add a set at a bundled price.

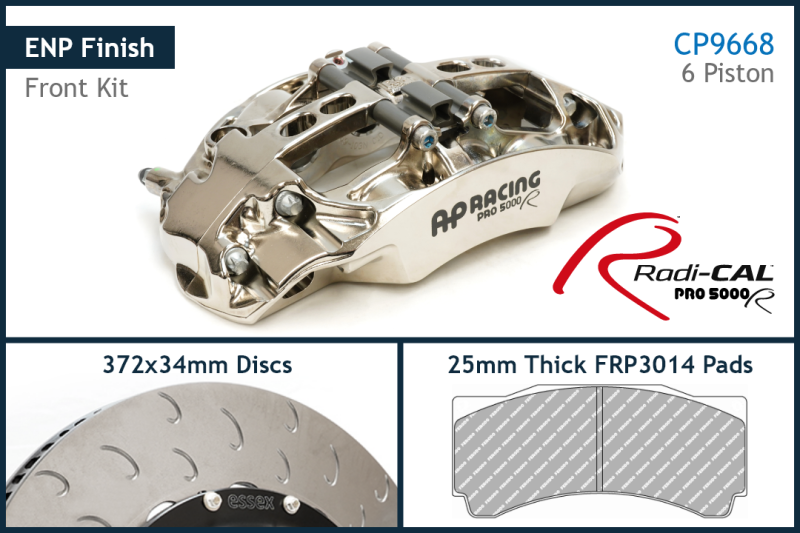

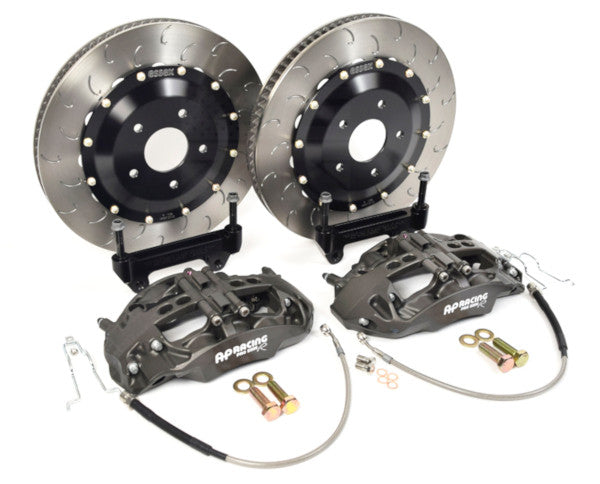

CP9660 vs. CP9668 (front kits). Both are AP Racing Pro5000R Radi-CAL six-piston calipers with stainless pistons and anti-knockback springs. The CP9660 uses the common 18mm-thick FRP3144 pad shape and is roughly 14mm narrower, giving the most wheel clearance. The CP9668 takes 25mm-thick (1") pads for longer pad life and more thermal mass; it is about 1 lb heavier per corner and needs ~14mm more spoke clearance. Check Essex's wheel fitment template for your wheels.

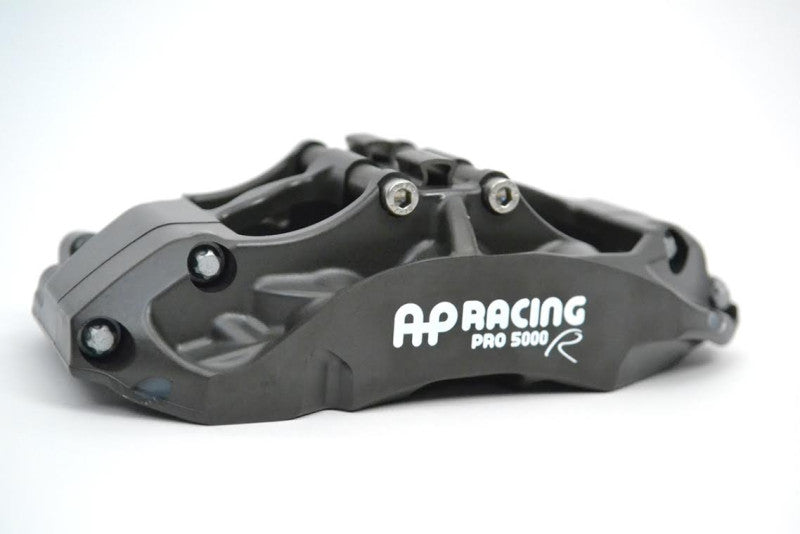

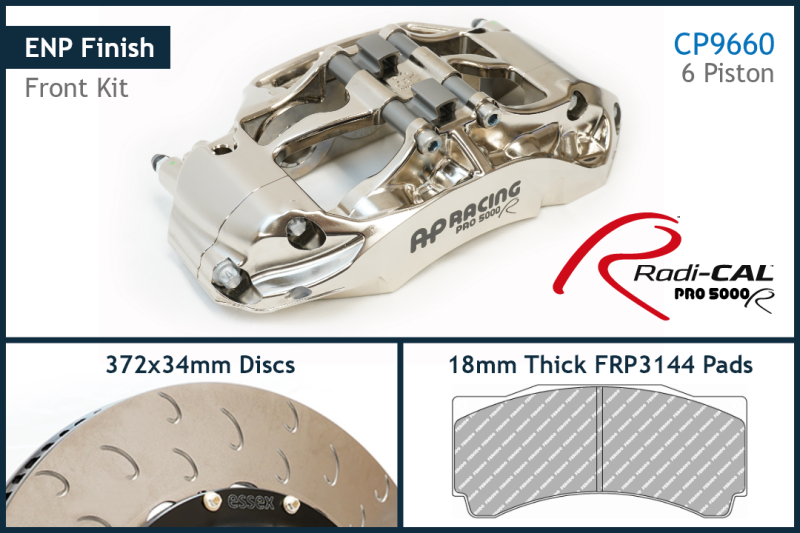

Caliper finish. Standard kits use AP Racing's hard anodized finish. ENP kits use the same caliper with a jewel-like Electroless Nickel Plated finish that is exceptionally durable, resists brake dust staining and is easy to clean.
Confirmed wheel fitment (no spacer)
- OEM 19" Style 788M
- OEM 19" Style 763M
- Apex EC7 18x9.5 +22
- Apex EC7 18x10 +33
- Apex FL-5 18x9 +30
- BBS E88 18x10 +25
- BBS RE 18x10 +20
- BBS RIA 18x10 +25
- BC Forged RS43 Monobloc 18x10 +15
- BC Forged RS43 Monobloc 18x10 +25
- Forgeline GAR1 18x9.5 & 19x9.5
- Forgeline GSR1 18x9.5 & 19x9.5
- Forgeline GT1-5 18x9.5 & 19x9.5
- Forgeline VX1R 18x9.5 & 19x9.5
Other wheels: download the Essex wheel fitment template for this caliper and check before ordering.
Ships direct from Essex Parts in the USA. Every kit is assembled, inspected and pressure tested before shipping. Pad tension (anti-rattle) kits are available separately.
