Complete front AP Racing by Essex Radi-CAL Competition Brake Kit for the Porsche 981 Boxster and Cayman (2013–2016, all except GT4) and 718 Boxster / Cayman, S, T, GTS 2.5 and GTS 4.0. Choose the 355x32mm kit (fits behind the OEM 19" wheels and popular 18" track wheels, saves 2–10 lbs per corner) or the larger 372x34mm kit shared with the 991 / 992 Carrera. AP Racing Pro5000R six-piston Radi-CAL calipers, 72-vane J Hook two-piece discs, Spiegler stainless lines and brackets; pad changes without removing the caliper. Select your kit, caliper and finish below.
Which variant do I need?
| Kit | Caliper | Finish | Fits | Essex part # | Price |
|---|---|---|---|---|---|
| 355 mm – 981 & 718 Boxster / Cayman, S, T, GTS 2.5 | CP9661 | Standard Anodized | Porsche 981 Boxster/Cayman (2013–2016, all except GT4) and 718 Boxster/Cayman, S, T, GTS 2.5 (2017+) – 355x32mm discs | 13.01.10072 | $5,349 |
| 355 mm – 981 & 718 Boxster / Cayman, S, T, GTS 2.5 | CP9661 | ENP (Electroless Nickel Plated) | Porsche 981 Boxster/Cayman (2013–2016, all except GT4) and 718 Boxster/Cayman, S, T, GTS 2.5 (2017+) – 355x32mm discs | 13.01.10072-ENP | $5,549 |
| 355 mm – 981 & 718 Boxster / Cayman, S, T, GTS 2.5 | CP9669 | ENP (Electroless Nickel Plated) | Porsche 981 Boxster/Cayman (2013–2016, all except GT4) and 718 Boxster/Cayman, S, T, GTS 2.5 (2017+) – 355x32mm discs | 13.01.10181-ENP | $5,899 |
| 372 mm – 981 & 718 Boxster / Cayman incl. GTS 4.0 | CP9661 | Standard Anodized | Porsche 981 Boxster/Cayman and 718 Boxster/Cayman, S, T, GTS 2.5 and GTS 4.0 – 372x34mm discs (same kit as the 991 / 992 Carrera) | 13.01.10096 | $5,549 |
| 372 mm – 981 & 718 Boxster / Cayman incl. GTS 4.0 | CP9661 | ENP (Electroless Nickel Plated) | Porsche 981 Boxster/Cayman and 718 Boxster/Cayman, S, T, GTS 2.5 and GTS 4.0 – 372x34mm discs (same kit as the 991 / 992 Carrera) | 13.01.10096-ENP | $5,799 |
| 372 mm – 981 & 718 Boxster / Cayman incl. GTS 4.0 | CP9669 | ENP (Electroless Nickel Plated) | Porsche 981 Boxster/Cayman and 718 Boxster/Cayman, S, T, GTS 2.5 and GTS 4.0 – 372x34mm discs (same kit as the 991 / 992 Carrera) | 13.01.10182-ENP | $6,199 |

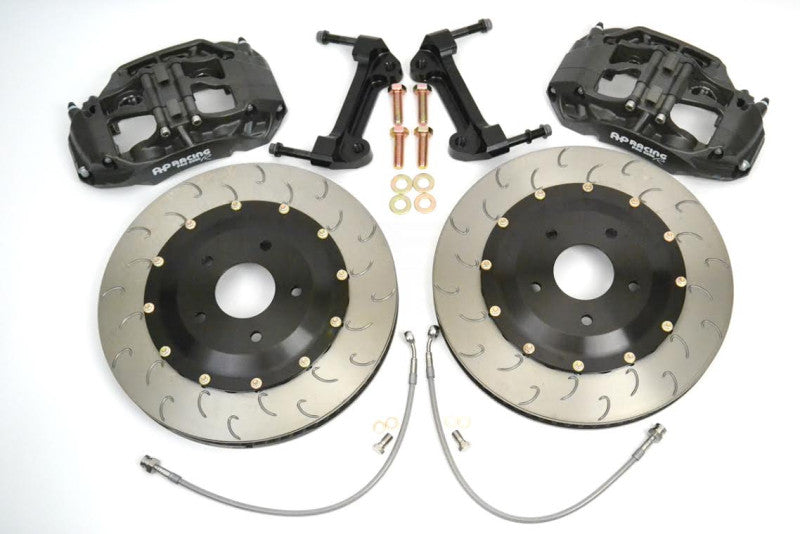

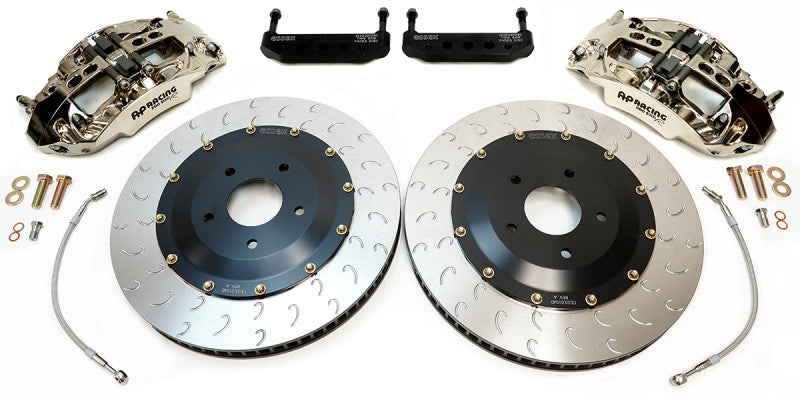

What's in the box

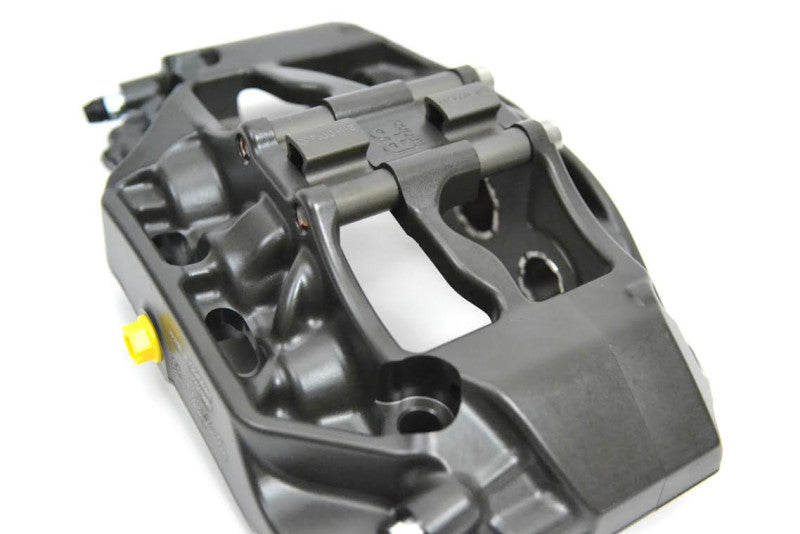

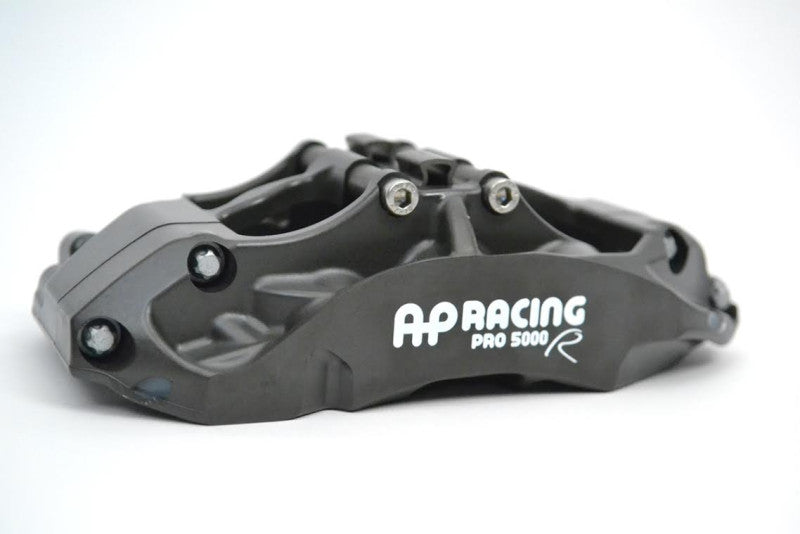

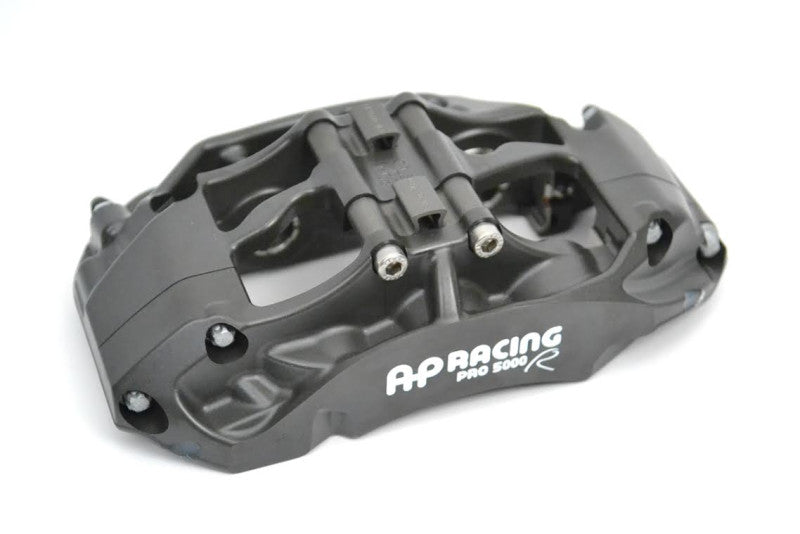

- One pair AP Racing Radi-CAL Pro5000R racing calipers (CP9661 or CP9669 six-piston)
- One pair 355x32mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
- One pair 372x34mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
- Disc burnishing in Ferodo Racing pad compound included at no additional charge on GT-car kits (normally $150 per disc pair). If you are using a brake pad brand other than Ferodo and are interested in compatible disc burnishing, please contact Essex support prior to purchase.
- One pair caliper mounting brackets and hardware
- One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
- Detailed installation instructions
Brake pads are not included. Racing pads are a personal choice, so Essex leaves them out of the kit price. The AP Racing Pro5000R calipers use industry-standard pad shapes stocked by every major pad manufacturer (Ferodo, Pagid, PFC, Raybestos, Endless, Hawk and more). Ask us to add a set at a bundled price.

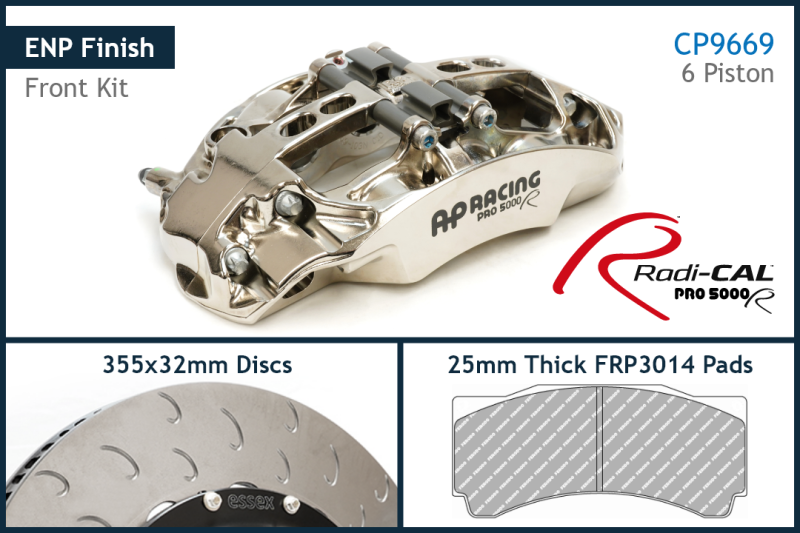

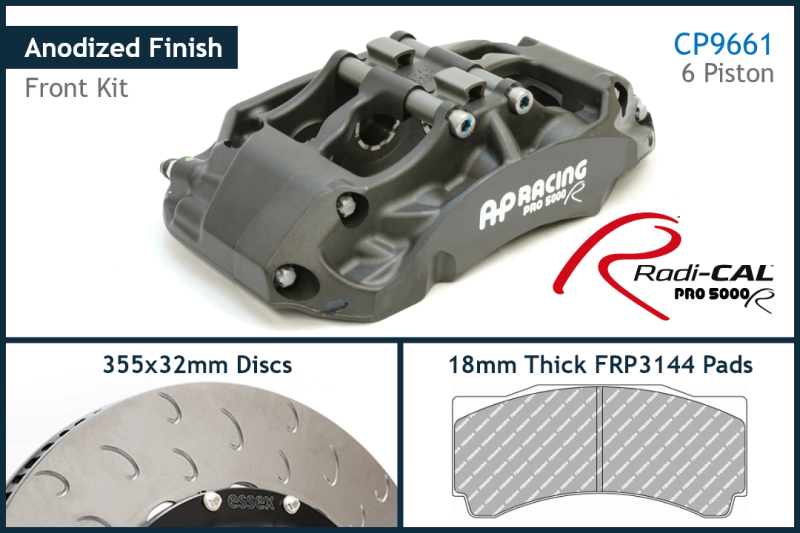

CP9661 vs. CP9669. Both are AP Racing Pro5000R Radi-CAL six-piston calipers with ventilated stainless pistons and anti-knockback springs. The CP9661 uses the common 18mm-thick FRP3144 pad shape. The CP9669 takes 25mm-thick (1") pads for longer pad life and more thermal mass; it is about 1 lb heavier per corner and needs ~14mm more wheel spoke clearance. CP9669 kits are supplied in ENP finish only.
Spare 355mm iron disc rings: CP7177-based rings – ask us. Spare 372mm iron disc rings: CP7177-based rings – ask us.

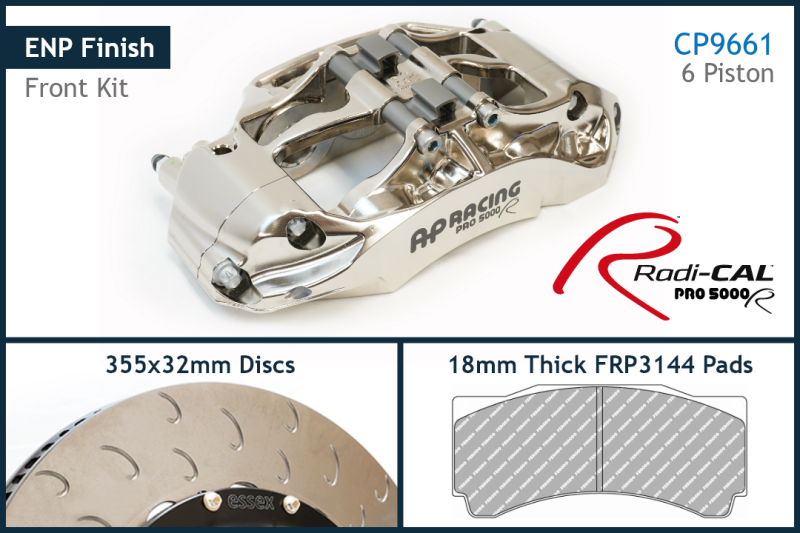

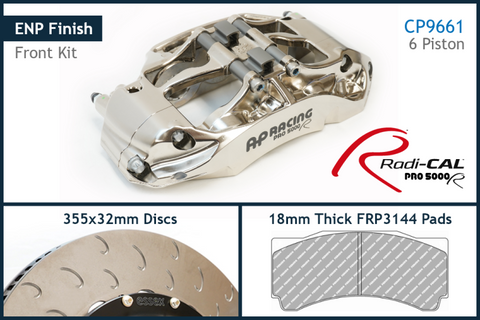

Caliper finish. Standard kits use AP Racing's hard anodized finish. ENP kits use the same caliper with a jewel-like Electroless Nickel Plated finish that is exceptionally durable, resists brake dust staining and is easy to clean.
Confirmed wheel fitment (no spacer)
355 mm – 981 & 718 Boxster / Cayman, S, T, GTS 2.5
- OEM 19" wheel from 2010 Cayman S
- APEX SM-10 18x8.5" ET42
- APEX SM-10 18x8.5" ET50
- APEX SM-10 18x9" ET46
- OZ Alleggerita HLT 18 x 8.5" +53
- Forgeline 18 x 9" +49
372 mm – 981 & 718 Boxster / Cayman incl. GTS 4.0
- APEX SM-10 18x8.5" ET42
- APEX SM-10 18x8.5" ET50
- APEX SM-10 18x9" ET46
- OEM Porsche Carrera T ("S4") Wheels 20x8.5" ET49
- Volk Racing TE37 Ultra 19x8.5 ET52
Other wheels: download the Essex wheel fitment template for this caliper and check before ordering.
Ships direct from Essex Parts in the USA. Every kit is assembled, inspected and pressure tested before shipping. Pad tension (anti-rattle) kits are available separately.
