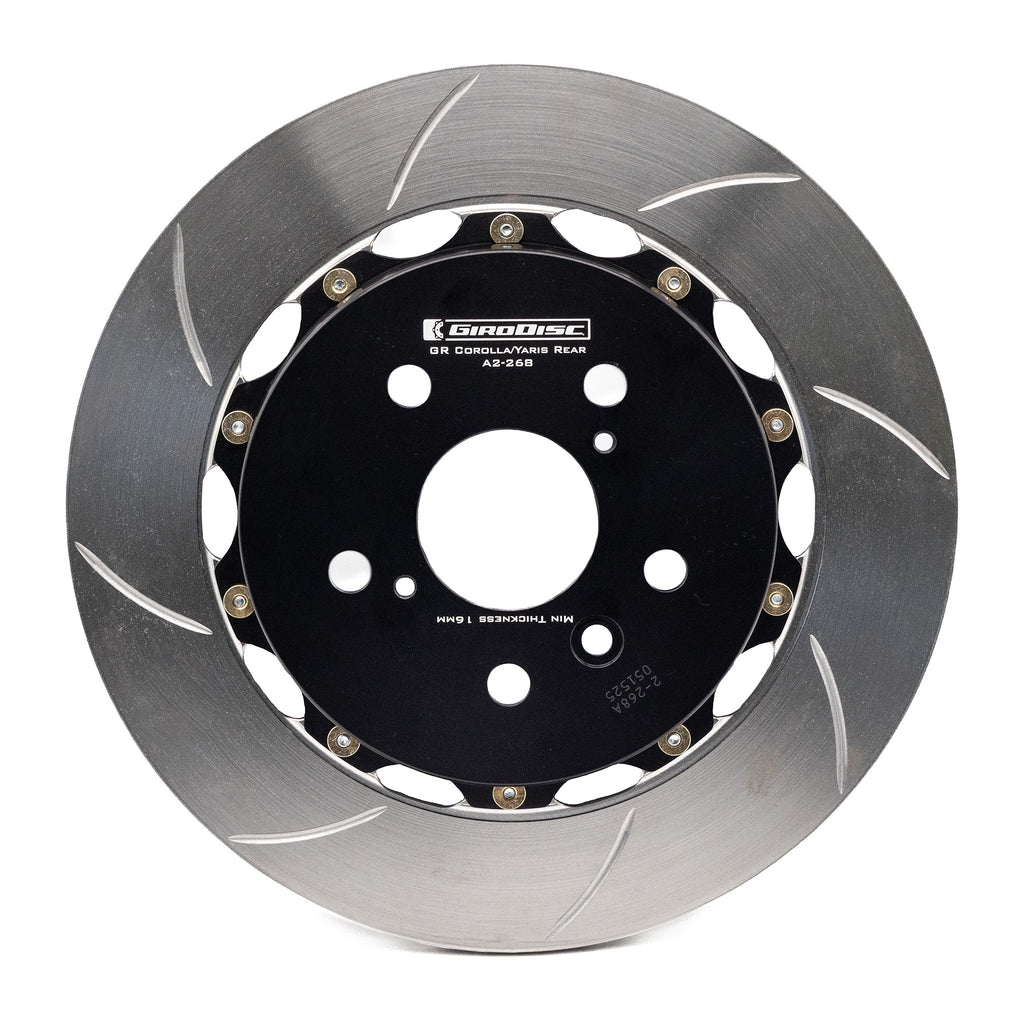

Girodisc 2-piece floating rear rotors — part number A2-268.
Fitment
- Toyota GR Corolla: Rear
- Toyota GR Yaris: Rear
Installation
- Larger than the factory rear discs; the kit includes caliper spacers and longer caliper bolts to reposition the caliper. No other modifications are needed.
Features
- Two-piece floating design: an iron friction ring on a 6061-T6 aluminum hat, cutting unsprung and rotating weight compared with a one-piece factory disc.
- Curved, directional cooling vanes act like a centrifugal pump, pulling air through the disc to control temperatures through repeated hard stops.
- Pin-drive float system with spring washers lets the ring grow with heat and self-center between the pads, without the cold-clunk rattle of a race-style floating rotor.
- Rings are cast from Girodisc's own high-carbon iron and machined in-house in Bellingham, WA; hats are machined from US-sourced aluminum.
- Keeps your factory calipers, brake bias and ABS behavior — a meaningful upgrade without a big brake kit.
- Serviceable: when the rings wear out, replace just the rings (D2-268) and keep the hats.
Specifications
- Diameter x thickness: 316 x 18 mm
- Minimum thickness: 16 mm
- Weight: 10.4 lb per rotor assembly
- 48 curved cooling vanes
Options

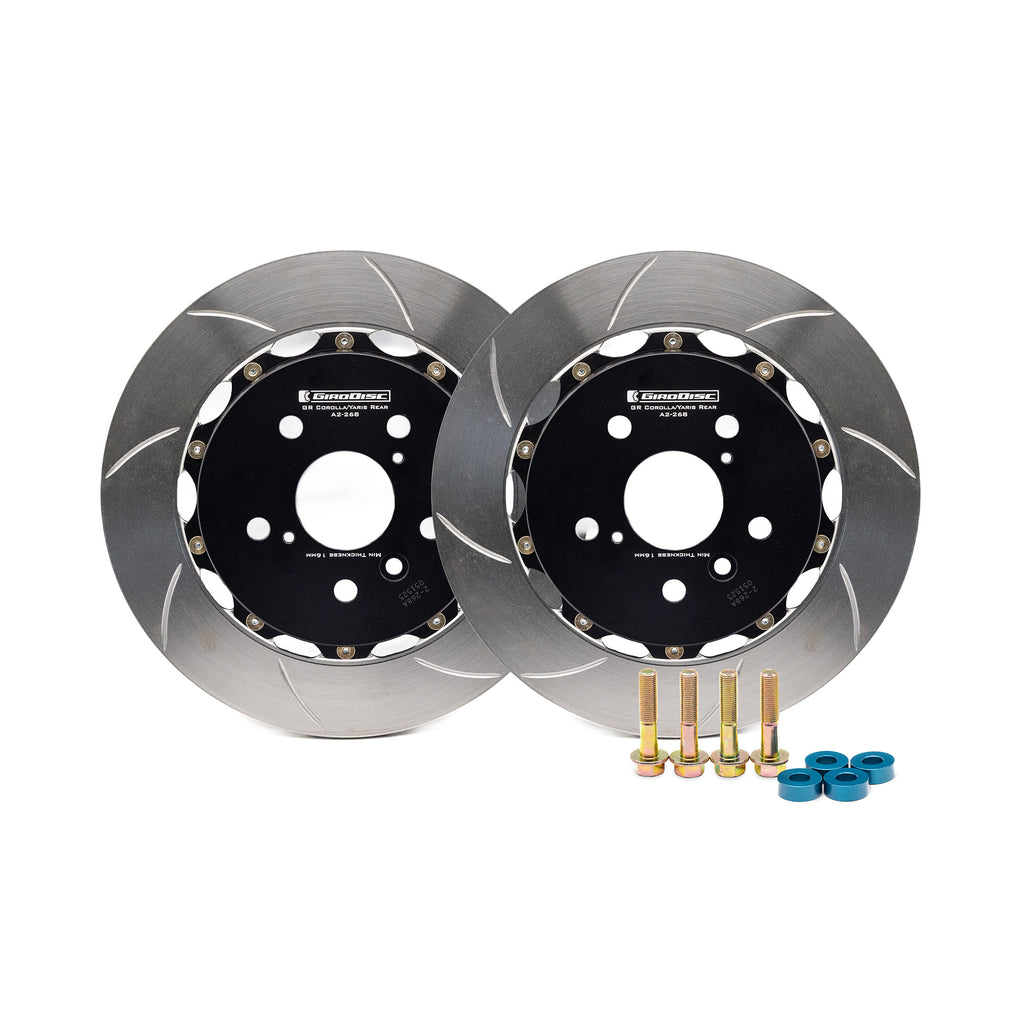

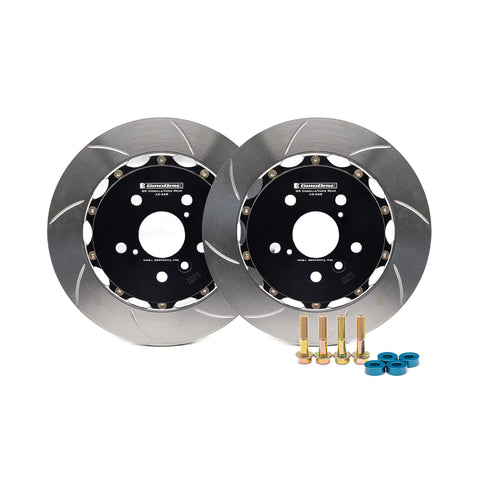

- Full Rotor Kit with Hats (A2-268) — complete, ready-to-install rotor assemblies.

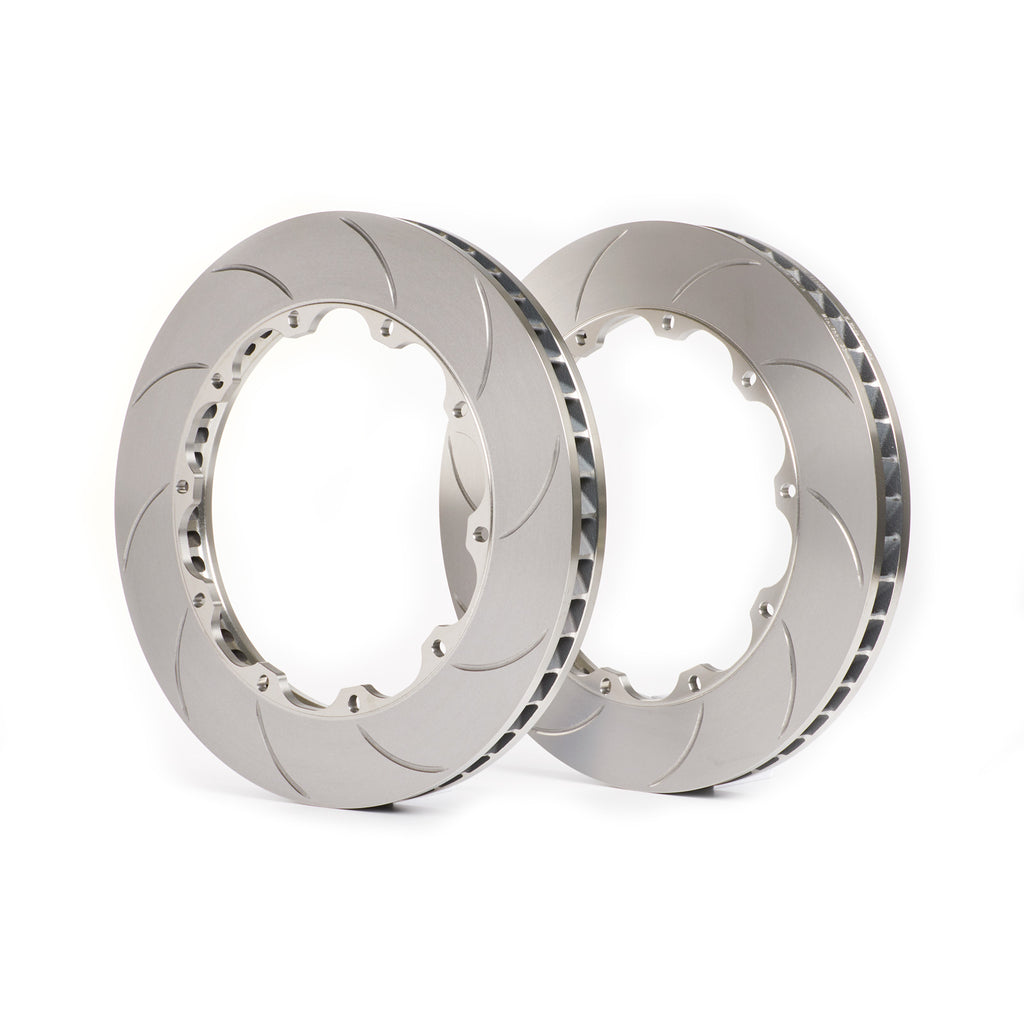

- Replacement Rotor Rings & Hardware ONLY (D2-268) — for cars already running these Girodisc hats. Rings come as a pair with new mounting hardware; you reuse your existing Girodisc hats.
- Girodisc replacement rings fit Girodisc hats only — not other brands' hats, and not the hats from cars that came with 2-piece rotors from the factory.
- Replace the rings once they reach minimum thickness (16 mm), or sooner if a crack runs out to the edge of the ring.
Product photos are supplied by Girodisc and may be representative of the product family rather than your exact part.
