Öhlins TTX Pro Suspension System for Porsche 911 GT3 / GT3 RS (991.1 & 991.2, 2014–2019)
Öhlins TTX Pro is the apex of Öhlins' automotive range: twin-tube, solid-piston dampers drawn directly from the company's Formula 1, IndyCar and MotoGP programs, with separate compression and rebound adjusters on every corner. Pressure-balanced design eliminates cavitation for consistent, fade-free damping lap after lap. Rebuildable and revalvable through Öhlins USA.
Two versions
- POF MR00S1 – 911 GT3 (991): 100 N/mm front (48120-17) / 200 N/mm rear (48140-37), 20 mm target ride-height reduction.
- POF MR00S2 – 911 GT3 RS (991): 120 N/mm front (48120-21) / 200 N/mm rear (48140-37), 15 mm target ride-height reduction.
Kit contents

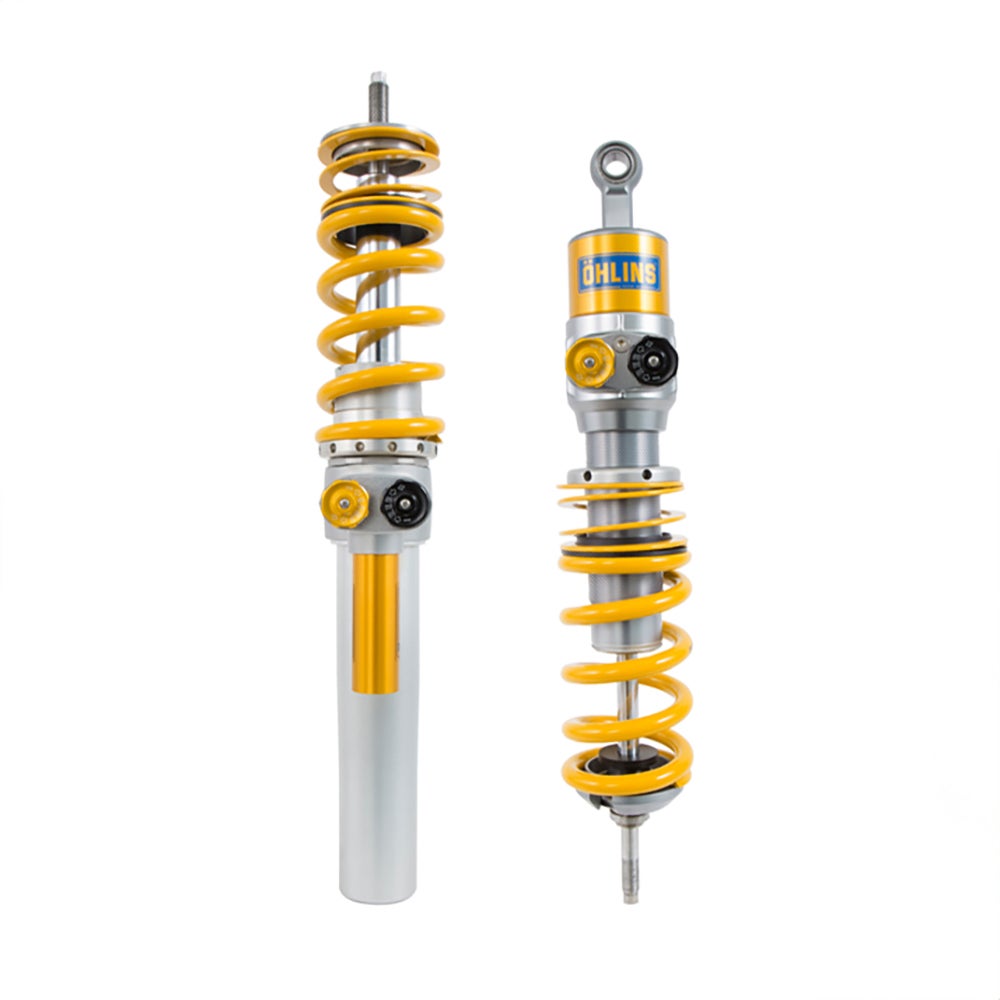

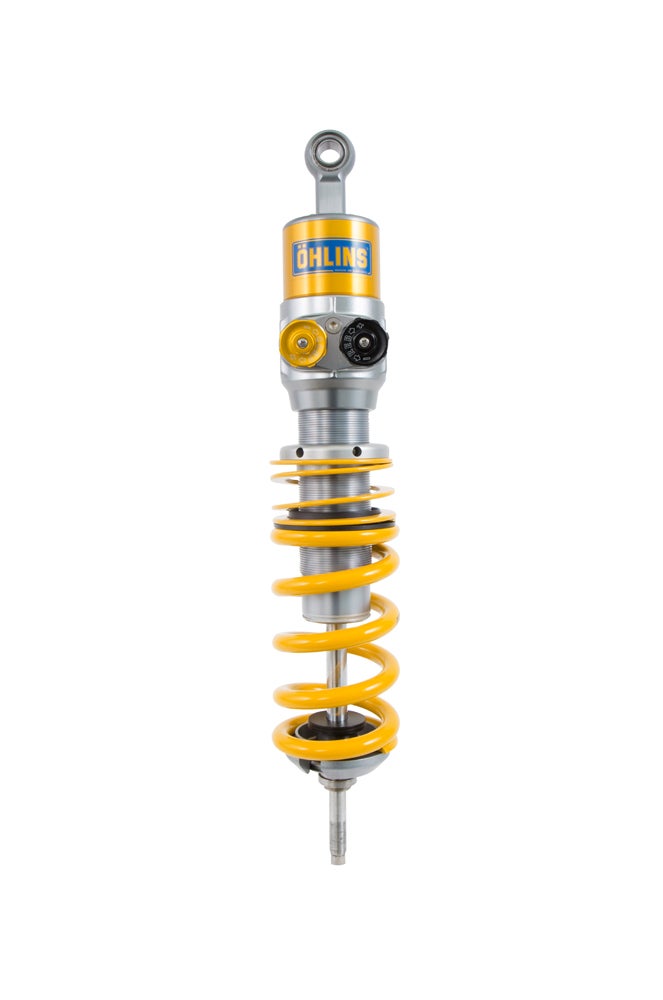

- Öhlins TTX dampers front and rear with separate compression and rebound adjusters
- Main springs and helper springs as specified above
- Re-uses the factory upper mounts. Öhlins USA recommends the 991 GT3 RS spherical rear upper mounts on the GT3 (the GT3 mount can be reused).
Cars with PASM / factory lift: the Öhlins 35020-13 PASM cancellation kit ($870) is required to avoid fault codes and is offered as an option above. The system does not function with the factory front axle lift system.
Sold as a complete set for the car. Weight 44 lb.
Why Öhlins
Öhlins has more than 40 years of race-winning experience in Formula 1, IndyCar, NASCAR and MotoGP, and every Öhlins automotive system is developed and validated on the company's own shaker rigs and race programs. PHD Racing is an authorized Öhlins dealer – kits ship complete with Öhlins USA's two-year warranty.
