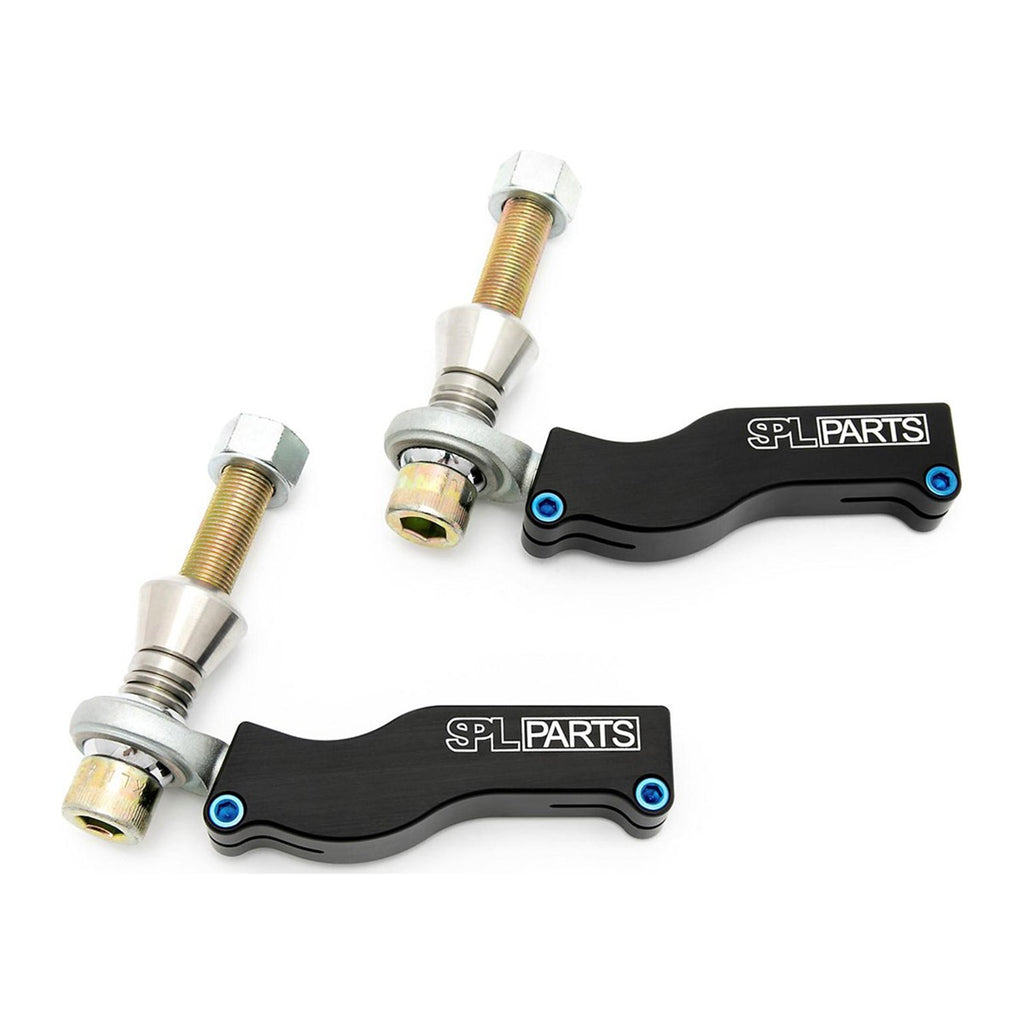

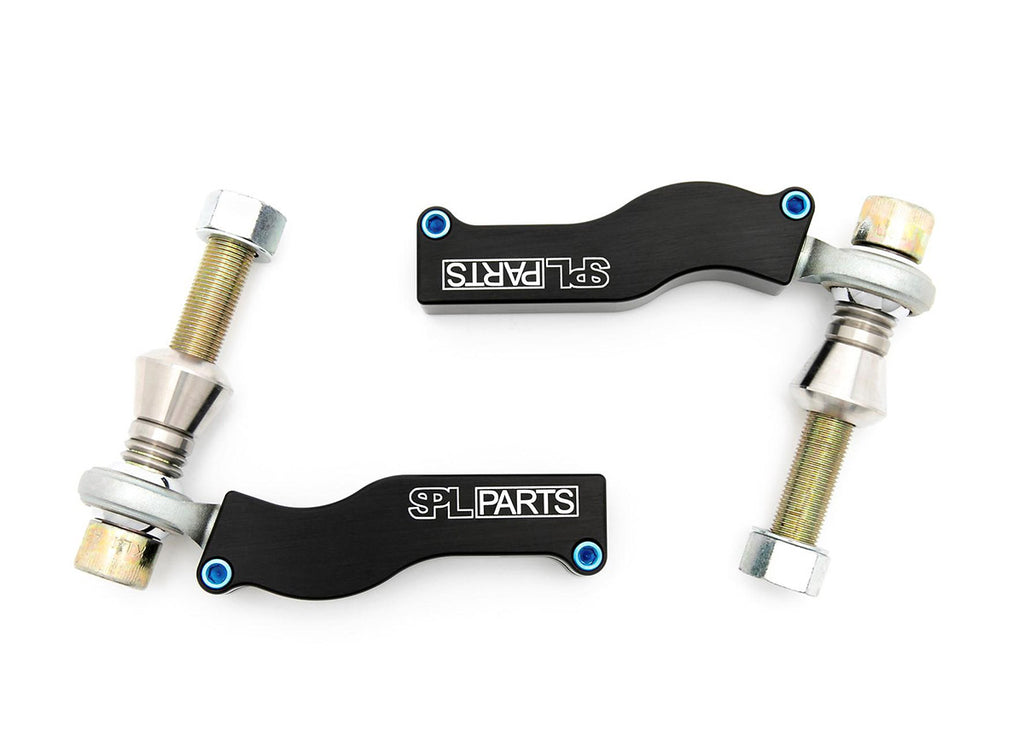

BMW E9X/E8X/F2X/F3X/F8X Front Tie Rod Ends (TRE) allow the tie rod end pivot to be relocated, which will correct bump steer resulting from modified caster or lower arm geometry, thus reducing lap times.
Technical
Bumpsteer Adjustment
Correct Bumpsteer from Modified Caster or Lower Arm Geometry

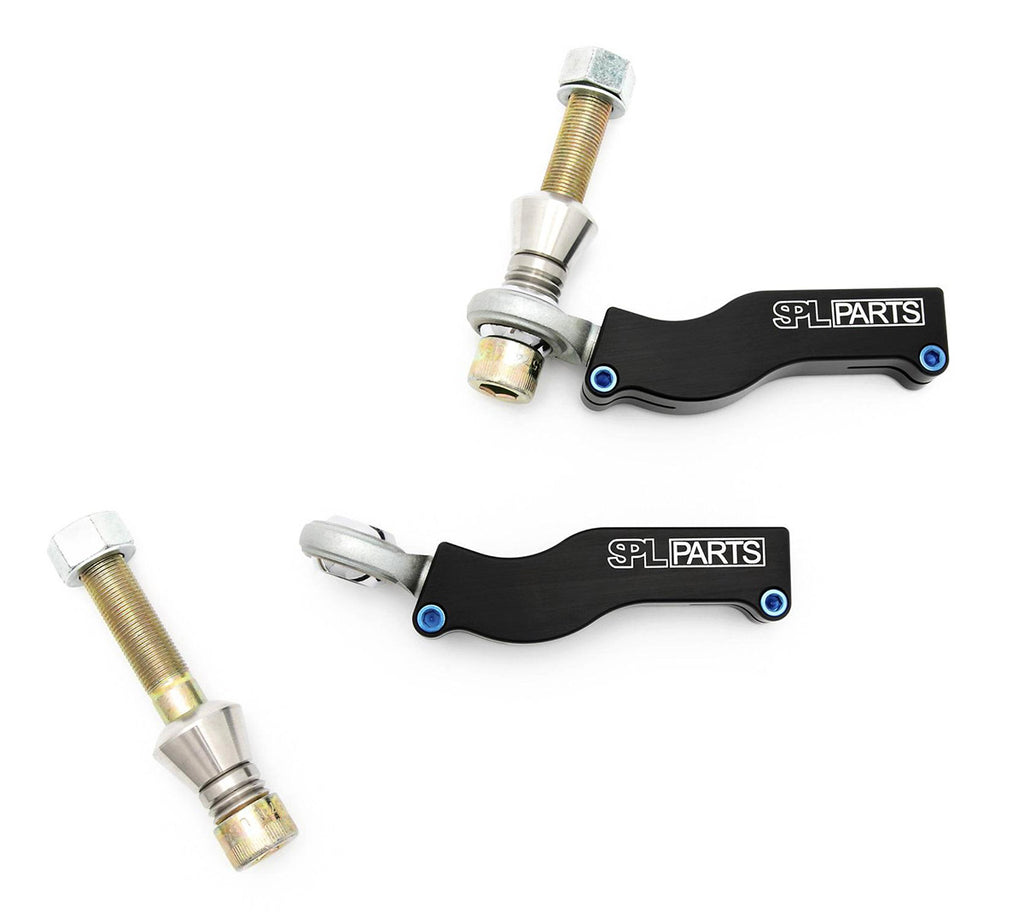

Relocating the tie rod end pivot with the provided 1/4" and 1/8" thick Stainless Steel bump steer spacers corrects bump steer resulting from modified caster or lower arm geometry. The spacers feature tapered ends to provide more misalignment for precise adjustment.
Full Droop Travel on Lowered Cars
Prevents Tie Rod Bind and Protects the Inner Tie Rods
On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing the inner tie rods from breaking or bending when racing. Custom CNC machined 6061-T6 Billet Aluminum curved turnbuckles maximize articulation and allow full droop travel.
Benefits
- Large Range of Bumpsteer Correction
- Prevents Tie Rod Bind on Significantly Lowered Cars
- Protects the Inner Tie Rods from Breaking or Bending When Racing
- More Predictable Handling and Reduced Lap Times
- Low Friction, Teflon-Lined FK Bearings
Materials
- Custom CNC Machined 6061-T6 Billet Aluminum Curved Turnbuckles
- Low Friction Teflon-Lined FK Heim Joints/Rod Ends
- 1/4" and 1/8" Thick Stainless Steel Bumpsteer Spacers with Tapered Ends
- ASTM A574 Socket Head Cap Bolts for Maximum Articulation (Minimum Tensile Strength of 170,000 psi)
- Blue Anodized Titanium Socket Head Cap Screws
Made in the USA.
Noise, Vibration, and Harshness (NVH)
The SPL tie rod ends are not a significant contributor to NVH. They improve the driving experience by reducing bumpsteer on uncorrected cars.
Applications
2008 - 2013 BMW 1 Series (E81, E82, E82 M, E87, E88)
2006 - 2013 BMW 3 Series (E90, E91, E92, E93)
2008 - 2013 BMW M3 (E90, E92)
2010 - 2019 BMW 1 Series (F20, F21)
2010 - 2021 BMW 2 Series (F22, F23)
2011 - 2020 BMW 3 / 4 Series (F30, F31, F32, F33, F34, F36)
2014 - 2020 BMW M3 / M4 (F80, F82, F83)
2016 - 2021 BMW M2 (F87)
Replaces OEM Part Number(s)
This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.
32106767781 / 32106767782
32106799966 / 32106799967
Installation Instructions
SPL Bumpsteer Adjustable Tie Rod Ends Install Instructions
Sold as a pair. One pair per vehicle.
